WalliN W-NFE Builder Package Wall

Features

• Split end plugs for easy installation
• Torque control nut: automatic torque without torque wrench

Areas of application

Secure and tight multi-section house entry for supply lines (local, district and geothermal heating, water, electricity, telecommunications) in buildings with basements.

Description

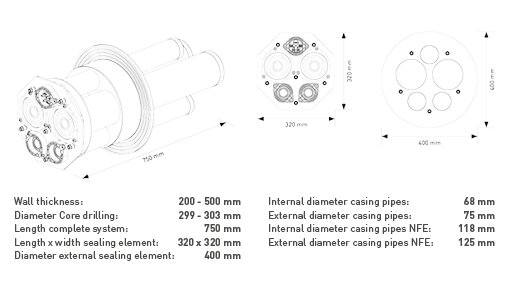

The WalliN W-NFE house entry multi utility is ideal for the gas and pressurized water-tight entry of heat pump pipes or local, district or geothermal heating pipes with diameters of 110, 90, 75, 50, 40 or 32 mm, optionally also available with a diameter of 125 mm, into the cellar - up to a pressure of 1 bar.

Scope of delivery

• Internal sealing element with 5 casing pipes for the installation of supply lines for heat pump, local, district or geothermal heating (supply and reflux), water, electricity, telecommunciation incl. protection covers
• External sealing element

custom_pim_informations_installationsset

• NFE Sealing Insert: - 2 pcs. Scope of application: 32, 40, 50, 75, 90, 110 mm or blind, optionally available: 125 mm primary sealing + secondary sealing, 2x end plug, 2x hose connection 125/125
• Electricity/Water Sealing Insert: - 2 pcs. with stepless onion ring technology 26-50 mm or blind, primary sealing + secondary sealing, casing pipe end plugs including, end plugs split, hose connection 80
• Telecommunication Sealing Insert: clamping range: 5-13 mm, 3x 7-13 mm, 13-21 mm, primary sealing + secondary sealing, casing pipe end plugs including, end plug split, hose connection 80


  Optionally available:
• Extension Set
