WalliN W Builder Package Wall
Available, delivery time: 1-3 working days
| Multi utility house entry for supply lines (gas, water, electricity, telecommunication) for buildings with basement |
| Description | PVC housing, sealing inserts, external sealing element with flange seal, end plugs and hose connectors |
| Description | Gas- and water pressure-tight up to 1 bar; gas- and odor-tight (high-quality in terms of TA-Air); radon-tight; resistant to methane gas; four-skid seal: exterior sealing of concrete up to 10 bar DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E |
Extension set included |
Features
- DVGW approval
- Split end plugs for easy installation
- Torque control nut: Automatic torque without torque wrench
Areas of application
Secure and tight multi-section house entry for supply lines (local, district and geothermal heating, water, electricity, telecommunications) in buildings with basements.
Description

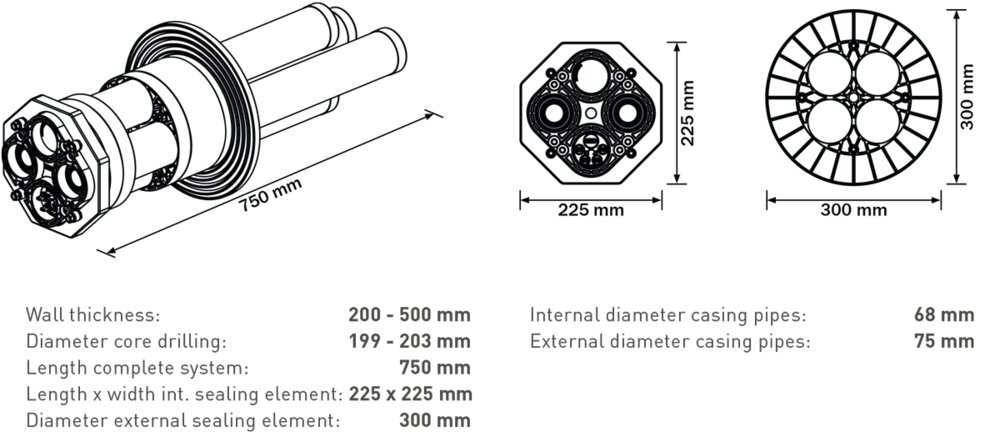

The WalliN W-NFE house entry multi utility is ideal for the gas and pressurized water-tight entry of heat pump pipes or local, district or geothermal heating pipes with diameters of 110, 90, 75, 50, 40 or 32 mm, optionally also available with a diameter of 125 mm, into the cellar - up to a pressure of 1 bar.
Scope of delivery
- Internal sealing element with pre-installed casing pipes incl. protective covers for the installation of supply lines such as gas, water, electricity, telecommunication.
- External sealing element
custom_pim_informations_verlängerungsset
- 4x double sleeve DN 75
- 8x sealing rings
custom_pim_informations_installationsset
- Sealing Insert - electricity/water: - 2 Pieces with stepless onion ring technology 26-50 mm or blind, primary sealing + secondary sealing, casing pipe end plugs, end plug split, hose connection 80
- Sealing Insert - telecommunication: clamping range: 5-13 mm, 3x 7-13 mm, 13-21 mm, primary sealing + secondary sealing, casing pipe end plugs including, end plug split, hose connection 80
- Sealing Insert - electricity + telecommunication: clamping range: electricity 25 - 36 mm / telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm, primary sealing + secondary sealing, casing pipe end plugs including, end plug, hose connection 80
Optionally available Gas installation sets:
- Schuck DN 25 consisting of primary and secondary sealing as well as gas end plug
- RMA DN 25 consisting of primary and secondary sealing as well as gas end plug
- Voigt DN 25 consisting of primary and secondary sealing as well as gas end plug
- Voigt DN 32 consisting of primary and secondary sealing as well as gas end plug
|
