WalliN House-Entry
Available, delivery time: 1-3 working days
Product number:
4-036-00041
| For installation in buildings with basements, for retrofitting supply pipes such as water, electricity and telecommunications |
| Material type | PVC-U plasticizer-free polyvinyl chloride with special coating |

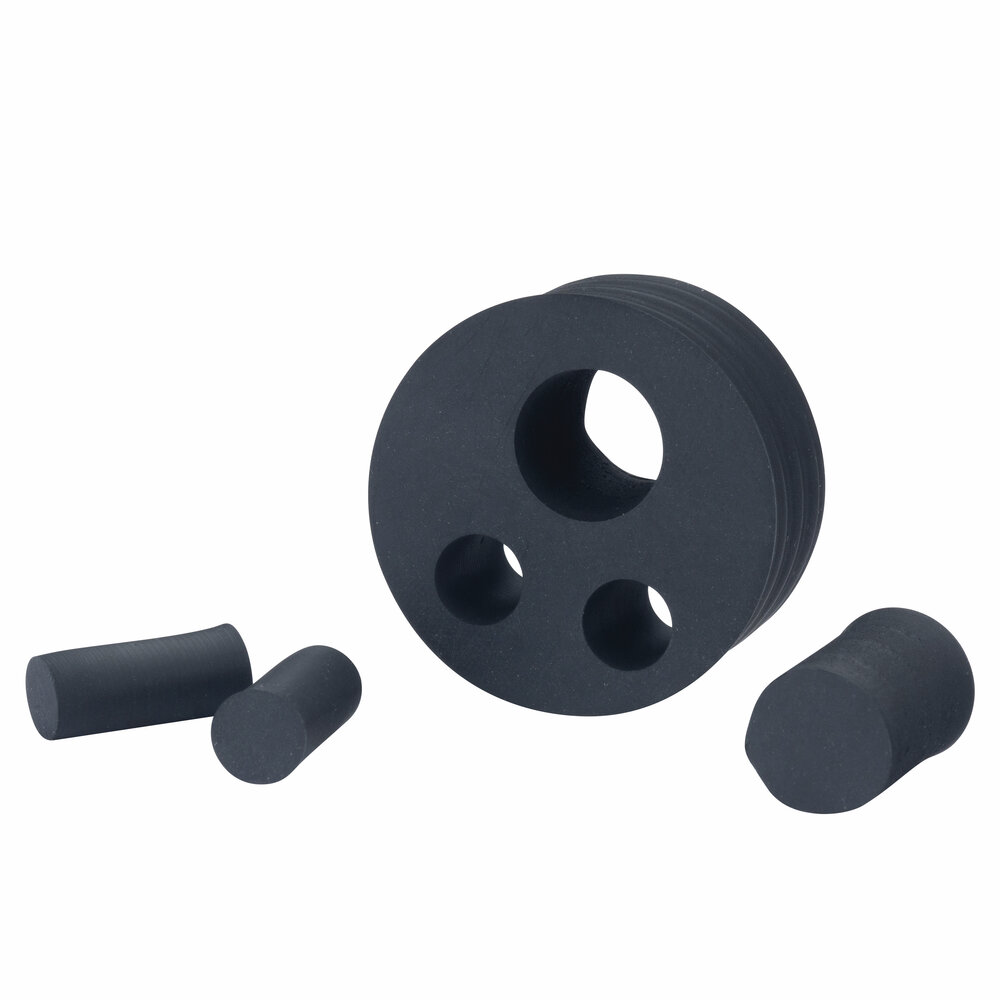

| Description | PVC-U pipe with screw connection for the pressure-tight insertion of supply pipes and cables, up to 2 bar. The special coating ensures an optimum connection to the concrete Alternatively: There is also the option of creating the Flex cable insert with individual holes for the cable assignment |
Product consists of the following components: |
| Size | ND 40 / 500 |
|---|
Features
- Versatile and space-saving compared to other house entries
- High strength
Areas of application
Secure house entry for supply lines, such as electricity or water, in buildings with basements
Description
• For pressure-tight insertion of supply lines and cables, up to 2 bar
• Easy installation without special tools
Assembly Instructions
| 1 | Set pipe with special coating in concrete |
| 2 | remove the sealing caps |
| 3 | guide the cable from the inside or outside through the single-gang house entry until the desired cable protrusion in the building is reached |
| 5 | screw the screw attachment hand-tight onto the condui |

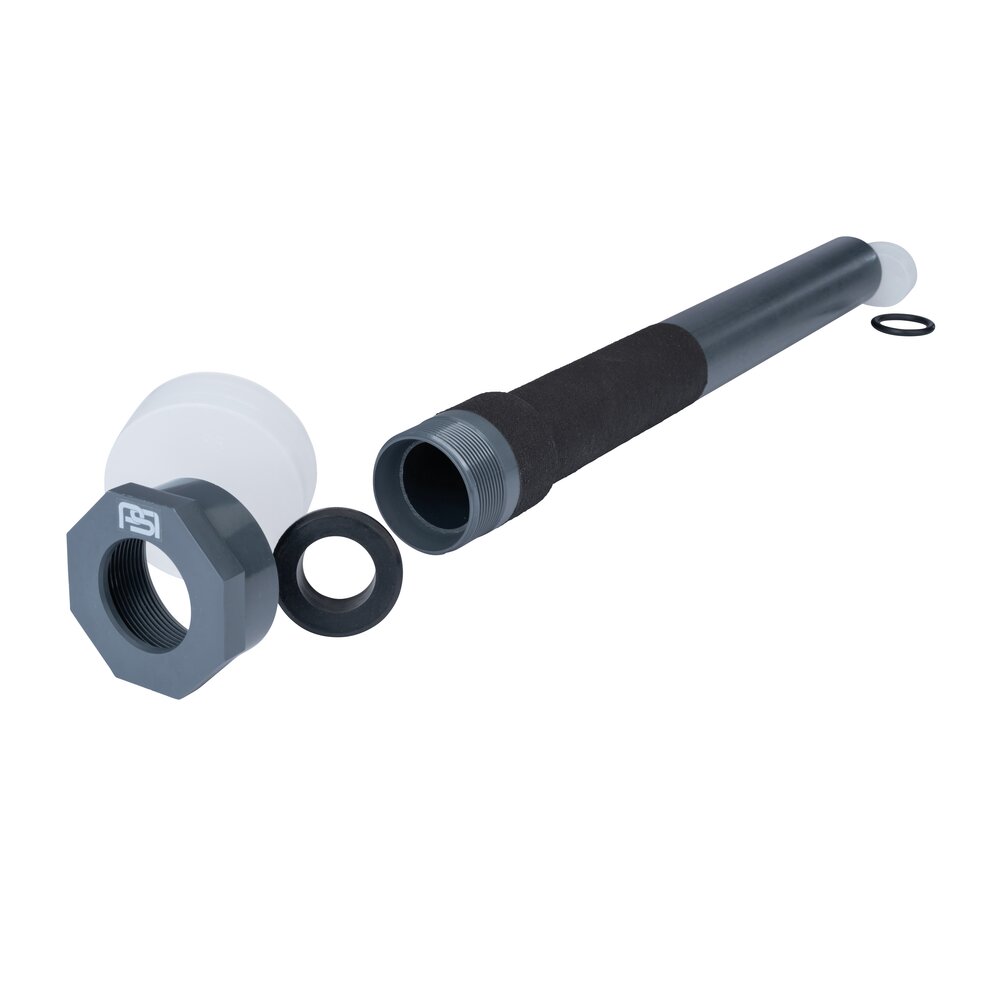

| ! | Tube with special coating; large sealing cap and small sealing cap; rubber seal; support rubber; screw cap |
| Attention | Drill holes individually customer request possibl |
|
