WalliN B Builder Package Floor
| Multi utility house entry for supply lines (gas, water, electricity, telecommunication) for buildings without basement |
| Description | PVC housing, NBR sealing inserts, PVC FLS 90, TPE four-skid seal, metal frame |
| Description | Gas- and water pressure-tight up to 1 bar; gas- and odor-tight (high-quality in terms of TA-Air); radon-tight; resistant to methane gas; four-skid seal: exterior sealing of concrete up to 10 bar |
Installation- and extension set are included in the scope of delivery. No need to pass on the |
| Categories | 1-fold |
|---|---|
| Tube length | 3 m |
Features
- Easy installation
- Adjustable height of the base plate/screed
- Flush-mount installation in the base plate
Areas of application
Secured and sealed multi utility house entry
for supply lines like gas, water, electricity and
telecommunication for buildings without basement.
Description
The WalliN Multi Utility House Entry is the ideal solution for the gas- and water pressure-tight multiple entry of
supply lines up to a pressure of 1 bar.
Thanks to the stable installation device and the visual check of the snap-on-socket, a simple assembly is
possible, thereby avoiding installation errors. The flushmount installation in the base plate prevents tripping
hazards and wall damages. Furthermore, the scope of delivery includes a building period installation cover.
The roughened trowel flange allows for an easy integration of the vapour barrier foils.

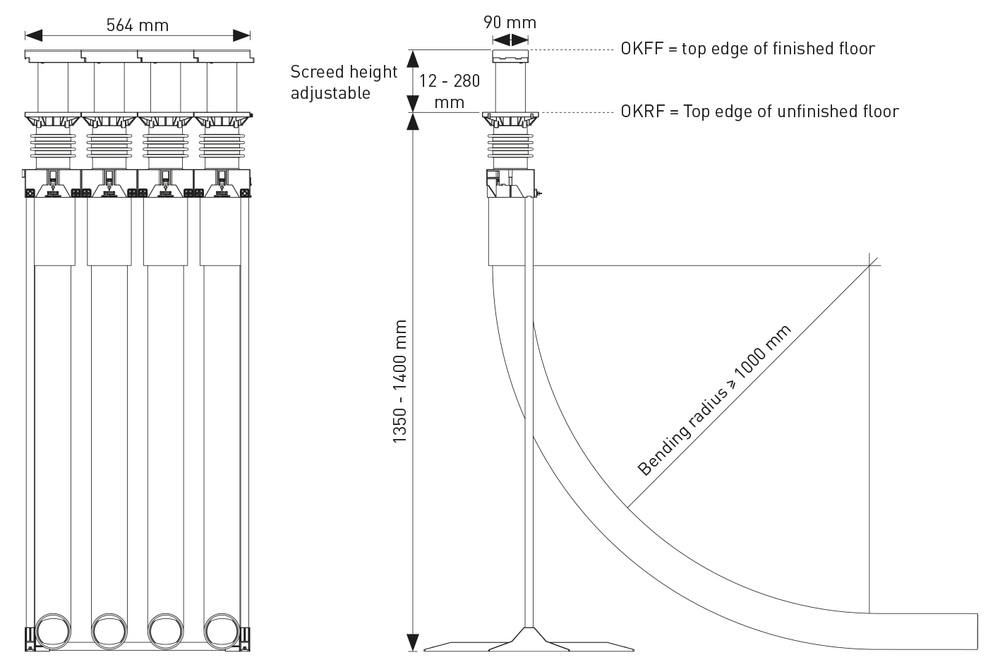

Both the base plate as well as the floor screed are adjustable in height.
The split end plugs are easy to install on the end of the casing pipe/tube.
Scope of delivery
- Standfuß, Standfußverlängerung und Trägerstangenpaar - höhenverstellbares Bodenplattenelement 4-fach mit gas- und druckwasserdichter Vierstegdichtung, Spachtelflansch, Sichtkontrolle für Rastmuffe und vormontiertem Bauzeitschutzdeckel - 4x Flexibles Leerrohr-System FLS 90 (3 Meter) mit aufvulkanisierter Rastmuffe und Verschlussdeckel - höhenverstellbarer Estrichaufsatz mit Schutzdeckel - Höhenfixierung für Estrichaufsatz (2 Stück) - Montageanleitungcustom_pim_informations_verlängerungsset
- 4x Schlauchverbinder 90 - 8x Reduzierstück DN 90 auf DN 75custom_pim_informations_installationsset
Strom/Wasser Dichteinsatz: - 2 Stück mit stufenloser Scheibentechnik 26-50 mm oder blind, Primärdichtung + Sekundärdichtung, Mantelrohrendstopfen bestehend aus - Endstopfen - geteilt - - Schlauchverbinder 90/75 Telekommunikation Dichteinsatz Spannbereich: 5-13 mm, 3x 7-13 mm, 13-21 mm Primärdichtung + Sekundärdichtung, Mantelrohrendstopfen bestehend aus - Endstopfen - geteilt - - Schlauchverbinder 90/75 Strom + Telekommunikation Dichteinsatz Spannbereich: Strom 25-36 mm / Telekommunikation 2x 5-10 mm, 3x 7-14 mm, Primärdichtung + Sekundärdichtung, Mantelrohrendstopfen bestehend aus - Endstopfen Strom + Telekommunikation - Schlauchverbinder 90/75 Optional erhältliche Gas Montagesets: - Schuck DN 25 bestehend aus Primär- und Sekundärdichtung sowie Gasabschlussstopfen - RMA DN 25 bestehend aus Primär- und Sekundärdichtung sowie Gasabschlussstopfen - Voigt DN 25 bestehend aus Primär- und Sekundärdichtung sowie Gasabschlussstopfen - Voigt DN 32 bestehend aus Primär- und Sekundärdichtung sowie Gasabschlussstopfen * Diese Angaben beziehen sich auf das WalliN B Bauherrenpaket Boden 4-fach mit FLS 90 (3 Meter), bei allen anderen Ausführungen weicht der Lieferumfang ab
Assembly Instructions
| 1 | Installation device consisting of stand, pair of support rods and stand extension. |
| 2 | Connection FLS 90 with inside diameter 80 to the base plate element. Safety through visual check of the snap-on-socket. |
| 3 | Slide the base plate element with the FLS 90 engaged onto the pair of support rods. Adjustable height using wing screws. Positioning with a distance of at least 5 cm from the finished plastered wall. |
| 5 | Installation situation of the floor screed insert with finished floor covering: connection to supply lines for gas, water, electricity and telecommunications using BKP sealing inserts. |
| 6 | External extension of the FLS 90 using the extension set, consisting of a reducer (DN 90 to DN 75) and a hose connector 90. |
| ! | + The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement! + DVGW-certified according to VP 601: overall system is gas- and water pressure tight up to 1 bar! Gas- and odour-tight – high-quality in terms of TA-Air! + Radon-proof! Resistant to methane gas! + Four-skid seal: exterior sealing of concrete up to 10 bar! + Overall system is gas- and water pressure-tight up to 1 bar! + Thanks to the stable installation device and the visual check of the snap-on-socket, a simple assembly is possible, thereby avoiding installation errors! + Hose diameter: external 90 mm - internal 80 mm! + With integrated installation set: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation set to other installers. + The flush-mount installation in the base plate prevents tripping hazards and wall damages! Building period installation cover included + The roughened trowel flange allows for an easy integration of the vapour barrier foils + Both the base plate as well as the floor screed are adjustable in height + BKP gas installation sets optionally available! + Split end plugs for easy installation + Extension set included + DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E |
|
|
|
|
|
|
