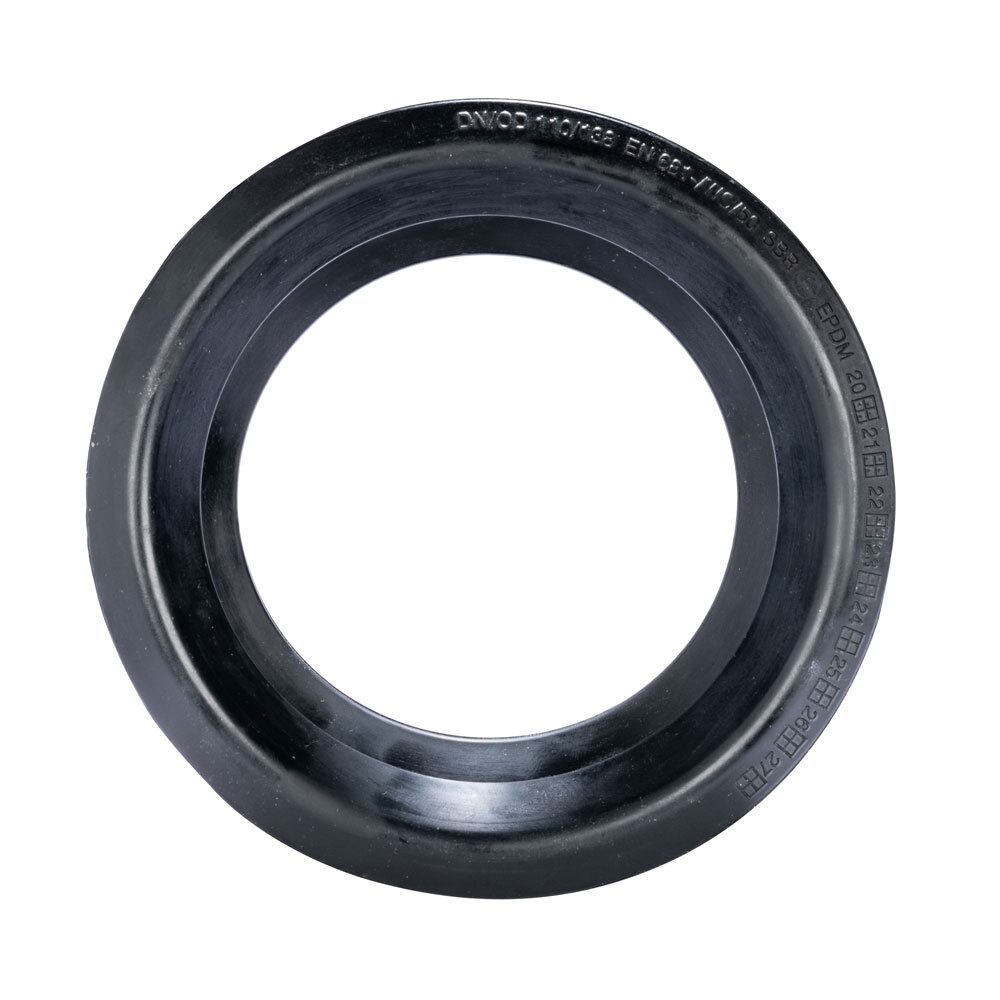

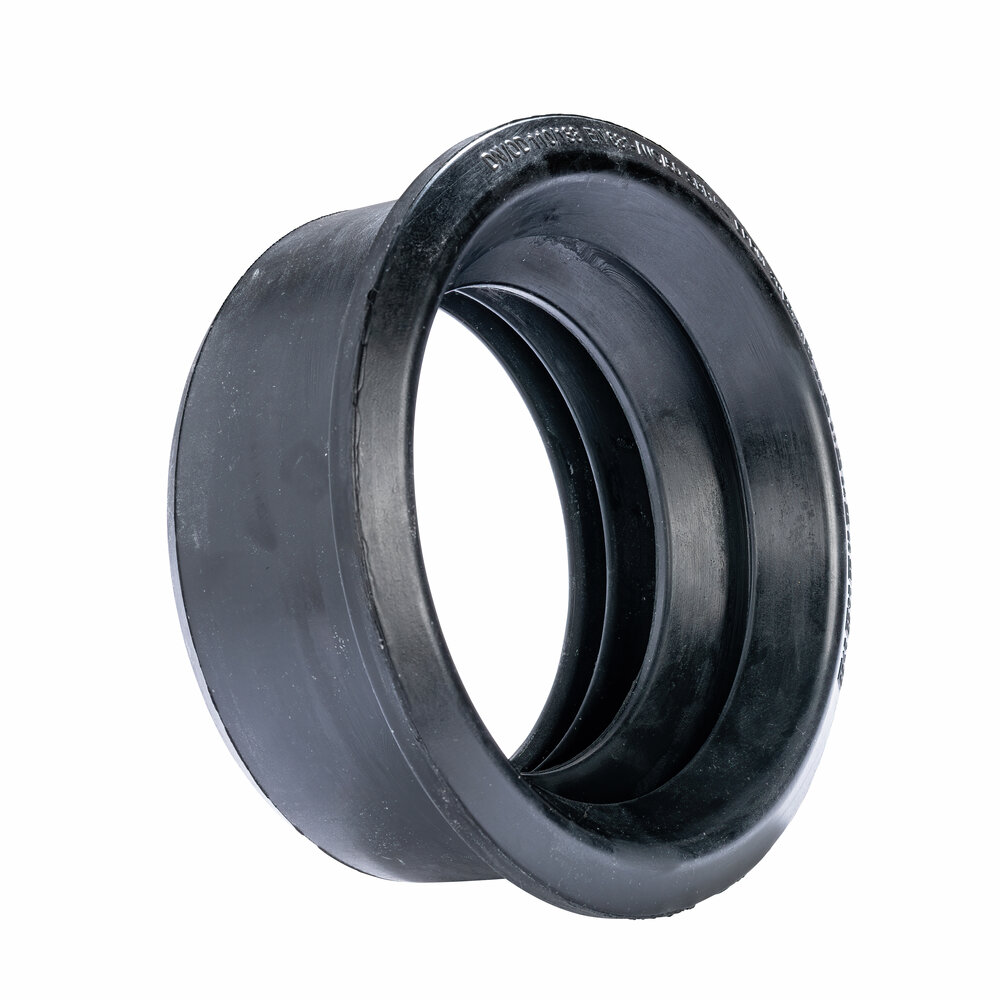

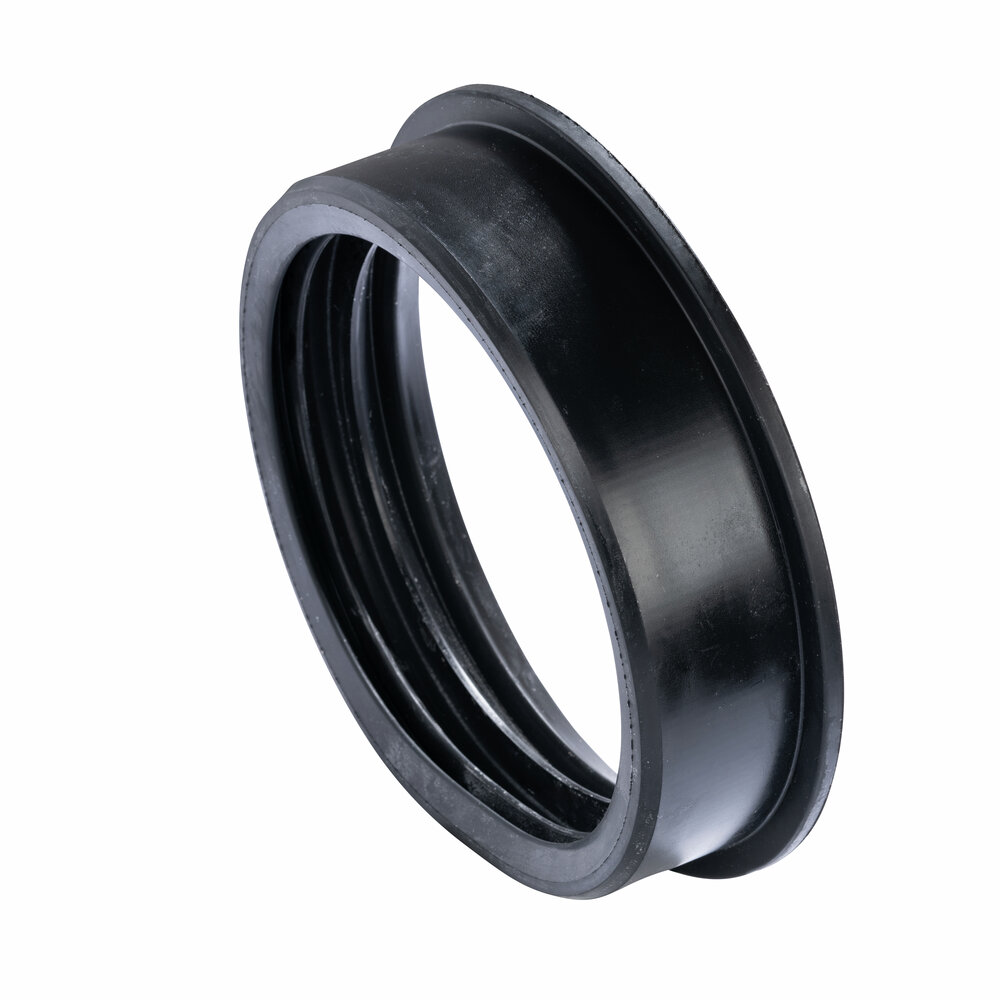

SealiT Manhole Connection Seal
Available, delivery time: 1-3 working days
Product number:
1-031-00001
| For the flexible connection of pipes to manhole systems and as connection pieces on pipework |
| Material type | SBR-Rubber compliant with EN 681-1 WCL |
| Description | Good mechanical strength, high resistance to weathering and acids |

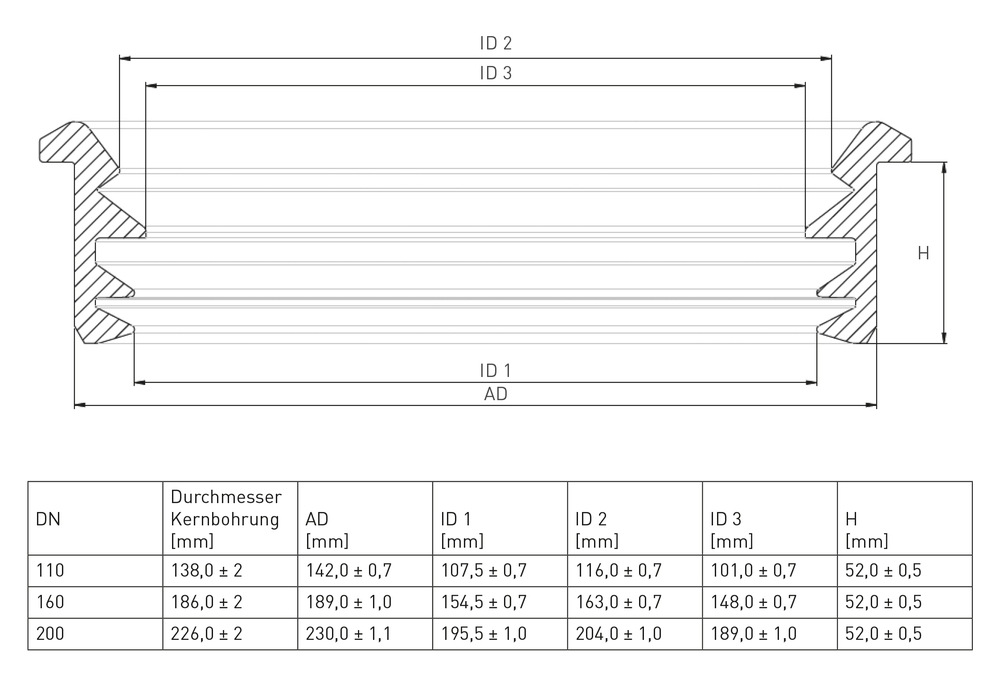

| Outer Diameter OD | 110 mm |
|---|
Features
Manhole connection
Areas of application
Manhole connection for plastic pipes
Description
No special tools are required for quick and easy installation; the seal is simply inserted into the annular space
Assembly Instructions
| 1 | The hole has to be drilled according to the tolerance ±2 |
| 2 | Press seal in the hole without lubricant. Make sure that the seal is fully pushed in. |
| 3 | The end of the pipe should be lubricated. Push pipe into the seal. Make sure that pipe is pushed in at least 50 mm. |
| ! | SealiT Manhole Connection Seals are used for fl exible connection between pipes and manholes. Storage in a dry place at a temperature above 0°C. |
|
