PlugiT Sealing Plug
Available, delivery time: 1-3 working days
| Standard rubber for gas- and water-tight sealing (e.g. heating pipes and water pipes) |
| Material type | EPDM Rubber |
| Temperature range | -25 °C bis + 110 °C |
| Pressure-tight | 3 bar |
| The plug can only be removed by hammering it out from the backside. Core drillings or casing pipe dimensions must be checked for a tolerance of |
| External size | 40 mm |
|---|---|
| Internal size | 16 mm |
Features
Horizontal and vertical installation Easy installation Wide range of applications Noise-absorbing Vibration-absorbing Electrically non-conductive High abrasion resistanceAreas of application
Sealing of pipe and cable penetrations which are led through walls and ceilings.Description
No special tools are required for quick and easy installation; the sealing plug is simply hammered into the annular space. The profiled design of the plug ensures a pressure tightness against gas and water up to 3 bar. Relevant test certificates are available. The sealing plugs are made of high-quality rubber and are extremely abrasion-resistant. Various rubber qualities are available for the different fields of application in industry and construction.

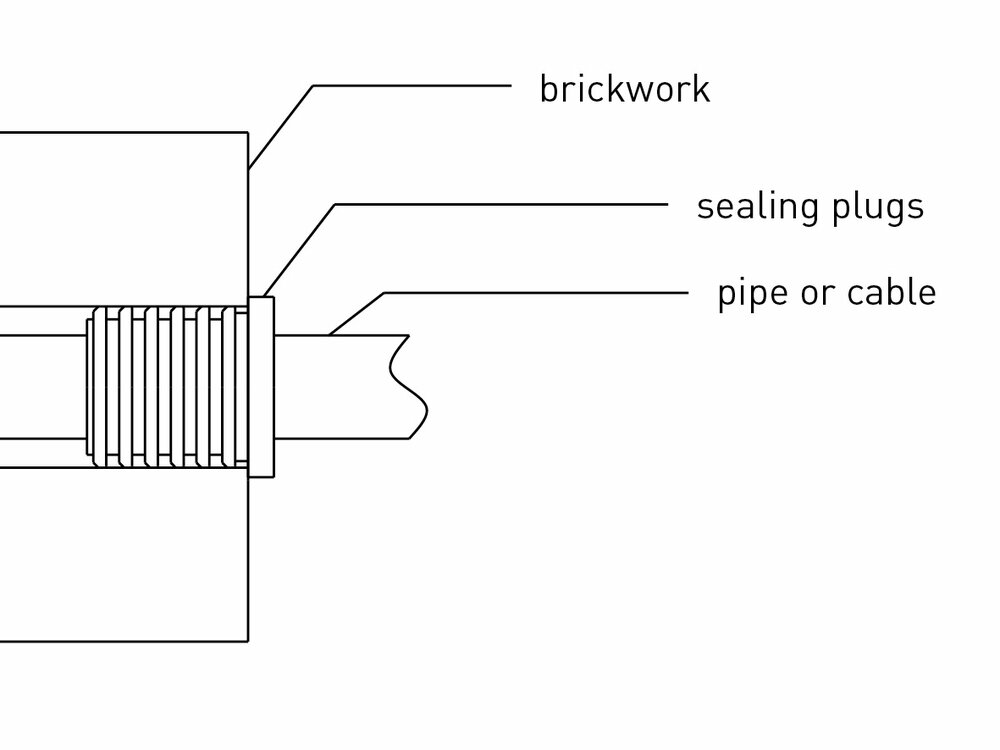

Use in a wall penetration
When using the seal in a core drilled hole which was made by means of a diamond drill bit, make sure that the surface is good and the concrete is of good quality.
The PlugiT sealing plug is driven from the outside of the wall into the annular space between the core hole and the carrier pipe respectively cable.
The pressure load of 3 bar against gas and water is safely achieved.
The use in a wall sleeve is also possible.
Assembly Instructions
| 1 | The wall opening (PVC sleeve, core drilled hole, steel sleeves....) must be cleaned inside. Please make sure that there is no dirt |
| 2 | Grease the inside of the wall opening and the outside and inside of the sealing plug with acid free Vaseline. This makes installation much easier and ensures a longer sealing life. |
| 3 | Please make sure that the cable or pipe is laying straight and centred in the wall opening. Put the two half shells of the PSI Sealing Plug around the cable or pipe and push the sealing in the opening. Attention: both half shells must be correctly positioned on each other. The plug must be pushed in until the flange touches the wall. Don’t push any further! |
| ! | • Plug can be disassembled only from the backside • Before installing coredrill, casing pipe dimensions has to be checked, tolerance O.D. max. +1mm • Plug is not recompressable, Weight of the pipe has to be carried/beared otherwise |
|
|
