High operational safety
Low tightening torques
Dimensional stability
Large operating temperature range
Areas of application

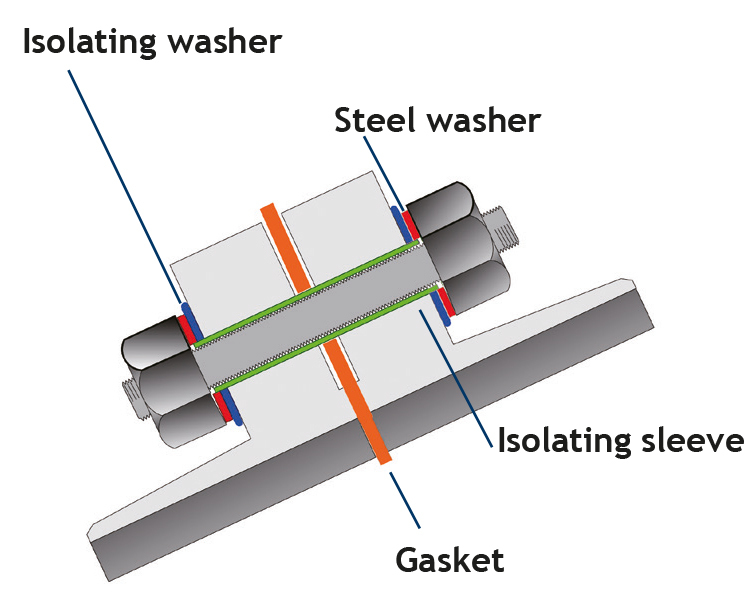

Sealing and isolation of flange connections in corrosion protection plants, for electrical separation. Flange Isolation
for cathodic corrosion protection of flange sealing surfaces in combination with isolation sleeves and isolation
washers. Flange Isolation to meet the requirements of technical regulations for flammable gases and liquids.
The flange gaskets GLV-UniSeal® T and GGr can, of course, also be used as gaskets without Isolation.
Description
Easy and quick installation. Can be mounted with " standard tools" and torque wrench.
Die Dichtleisten der Flansche müssen sauber, grat- und riefenfrei in der Größenordnung der nach DIN/ASME genormten Rauhtiefen sein (DIN EN 1092-1 B1: Rz max. = 50 µm).
2
Der Graphit-Dichtring darf nicht beschädigt sein. Der Graphit-Dichtring besteht aus einem weichen, anpassungsfähigen und kompressiblen Material, welches beim Einbau mit besonderer Sorgfalt zu behandeln ist.
3
Die UniSeal GGr Dichtung ist deckungsgleich mit den DIN-/ASME-Flanschen zu montieren.
