GaskiT WD Adjustable Flange Gasket
Available in 14 days, delivery time 1-3 working days
Product number:
1-008-04001
| Sealing of flange connections for water, wastewater and pumping station installations |
| Description | other elastomer materials e.g. FKM (Viton) on request |
| Material type | EPDM Rubber |
| Color | black |
| Temperature range | -25 °C bis + 120 °C |
| Description | Easy to use for flange misalignment each gasket consists of two segments connected by a tongue-and-groove connection adjustment range by rotating the two parts in opposite directions up to 8 degrees replaces the wedge disks commonly used in such cases, and the additional gasket in a simple and economical way gasket dimensions according to DIN 1514-1 for safe centering within the bolt ring
|
| Height (min. / max.) | 9 / 20 mm |
|---|---|
| Level of pressure | PN 10/16/25/40 |

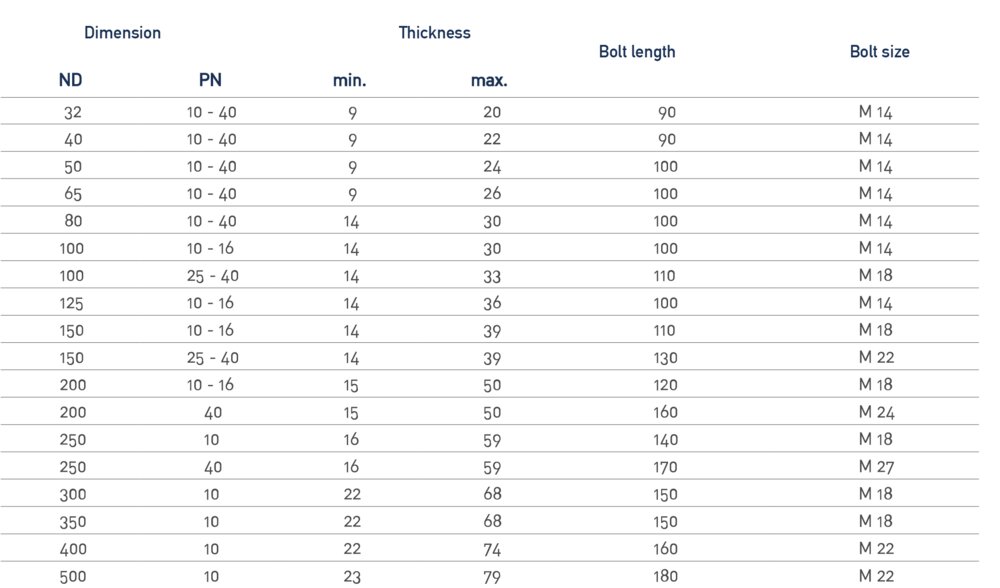

| Pipe dimension (ND) | 32 |
Features
High operational safety Low tightening torques Dimensional stability Large operating temperature rangeAreas of application
Sealing and isolation of flange connections in corrosion protection plants, for electrical separation. Flange Isolation for cathodic corrosion protection of flange sealing surfaces in combination with isolation sleeves and isolation washers. Flange Isolation to meet the requirements of technical regulations for flammable gases and liquids. The flange gaskets GLV-UniSeal® T and GGr can, of course, also be used as gaskets without Isolation.Description
Easy and quick installation. Can be mounted with " standard tools" and torque wrench.
|
|
|
|
|
|
